Clean your anilox in few minutes!
With the new USP patented system, Ditomsounds machines are fast and accurate also on high screen anilox rolls.
Ditomsounds range comes from our experience alongside printers which allowed us to design machines that could accurately remove flexographic inks and help the printers in production.
We have designed the Ditomsounds equipment in order to choose very simply the right configuration according to printing type (narrow band, medium or corrugated board), production department (one or more printing machines to be served) and the number of anilox to clean.
You can choose a Standard version with only one washing tank and make the tank bigger to clean more anilox rolls at the same time or you can choose the Superior version with an additional rinsing tank with a spray gun for rinsing and drying procedures.
Choose your version
What is your printing size?
Ditomsounds machines for narrow web are available from 330 mm lenght. They are available in standard version with a single tank or in Superior version with rinsing tank and spray gun. Ditomsounds cleaning machines can have a washing tank for one or more anilox rolls.
Ditomsounds machines for medium web are available from 1000 mm lenght. They are available in standard version with a single tank or in Superior version with rinsing tank and spray gun. Ditomsounds cleaning machines can have a washing tank for one or more anilox rolls.
Ditomsounds machines for wide web are available from 2000 mm lenght. They are available in standard version with a single tank or in Superior version with rinsing tank and spray gun. Ditomsounds cleaning machines can have a washing tank for one or more anilox rolls.
QUIZ
Desigh your own anilox cleaning machine
A short quiz to discover the right anilox cleaning machine and which options we suggest for your production.
You will receive the pictures and the technical specification of your cleaning machine.
SPECIAL CONTENTS
Watch the video!
In this video, you can see how Ditomsounds machines work:
-

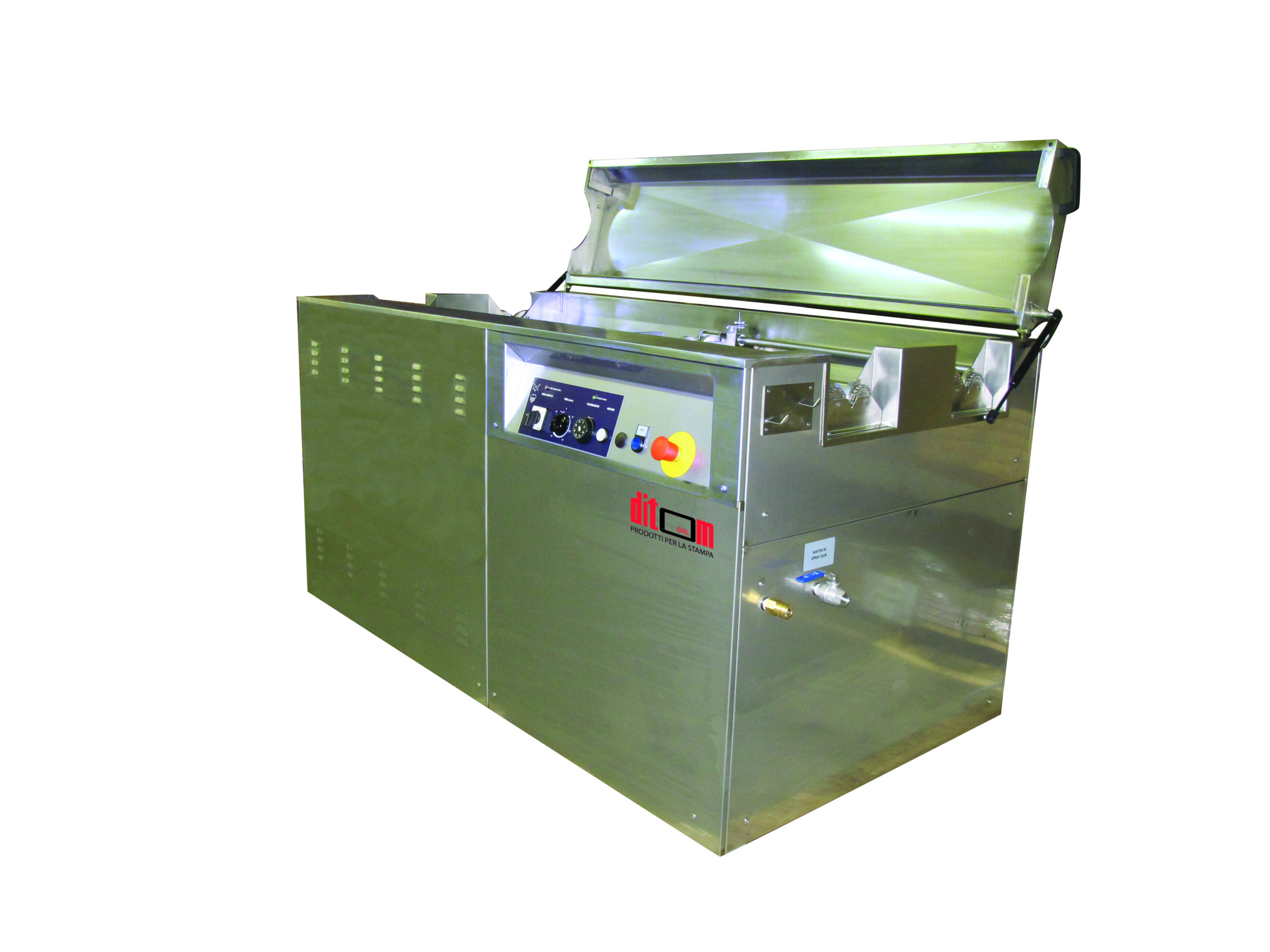

Superior version
You can see both washing tank and the rinsing tank with spray gun for water/air.
-
650 mm Lenght
the machine has a max. lenght of 650 mm but you can wash smaller anilox rolls thanks to support slider.
-
Simple control pannel
Control panel allows you to start the washing cycle and check temperature and time.
Ditomsounds cleaning machine
Discover the advantages in production
Few minutes deep cleaning.
in few minutes your anilox rolls are perfectly clean and ready for a new job.
Patented USP system.
Patented USP system for high and low waves frequency regulation that grants an accurate cleaning of anilox cells.
No need to remove gears
You don’t need to remove gears from anilox rolls because they will stay out from the tank.
Ready to use cleaners
No need to mix chemical or 2k products that can damage your machine.
Decanter system
Our machines work with long lasting products which can be reused several times.
Anilox hD options
Our machines can be designed with HD Anilox cleaning so that they can grant accuracy also on high screen anilox rolls.
How to use the machine
It's very easy !
1
Place the anilox roll
Place the anilox roll on the washing tank and let it roll till cleaner warms up.
2
Start washing cycle
Start washing cycle and you will see the ink to get out from cells. Motorotation allows perfect cleaning all along the surface.
3
Rince your anilox roll
At the end of the washing cycle, rinse the roll with water and dry it with spray gun (superior version)
4
Ready to use
The anilox roll is ready for printing.
OPTIONS
Which are the available options?
You can personalize our cleaning machines according to your production
-
Standard or Superior version
Choose the standard version with one washing tank with spray gun air/water
-
HD Anilox option
If you have high screen anilox rolls, you can choose the double frequency in order to have perfect cleaning also with anilox over 480 lcm
-
Tank for more than 1 anilox at the same time
You can choose to make the tanks bigger in order to wash or rinse more than 1 anilox at the same time.
-
Decanter
Decanter allows you to re-use cleaners in a very easy way I.
-
Filtration
QUIZ
Design your washing machine
A short quiz to discover which is the right anilox cleaner and which options we suggest for your production You will receive the pictures and the technical specification of your cleaning machine.
Cleaning products
Not flamable and re-usable cleaning products
Stop using 2k toxic and flamable cleaning products. Ditomsounds machines work with non flamable products with all certifications for food and pharma packaging.
They are specific cleaners which removes any kind of flexo ink or varnish residues in few minutes. They can be used several times.
Decanter system reduces cleaner consumption and discharge costs.
Our satisfied customers
Our skills At your service
ARCA ETICHETTE
flexo labels
“Prima di acquistare la lava anilox ditomsounds lavavo sempre ad ultrasuoni con una macchina concorrente utilizzando acqua e due solventi bicomponenti. Bisognava fare delle percentuali di acqua e di questi due solventi. Era un po’ complicato perché bisognava buttare dentro l’acqua, calcolare quanto inserire di un solvente e e tenere il bagno sempre controllato.
Ora che utilizziamo il sistema decanter ci troviamo sicuramente meglio!”
ROTOGRAF
food packaging labels
“L’aspetto che mi è piaciuto di più durante la demo è stato vedere come la macchina agisce nell’immediato su un anilox abbastanza compromesso e molto sporco. Il liquido si sporca di inchiostro e l’anilox torna a splendere.
Una cosa che non ci saremmo aspettati è la possibilità di vedere i risultati della pulizia non solo ad occhio nudo ma anche con il microscopio elettronico 3D che ci ha mostrato le condizioni dell’anilox prima e dopo il lavaggio.”
You ask, we answer
F.A.Q.
Do we need special requirements to install Ditomsounds machines?
No, you only need an electric connection and you are ready to use our machine. According to the version you choose, compressed air could be required.
I use several kind of inks Shoud I change the product every time ?
No, we have products which can remove all kind of inks:uv, water or solvent based. You can choose the right cleaning product for your production
i have anilox with different sizes. Can I wash all of them?
Sure, with the slider and support for different sized anilox you can clean both small and bigger anilox rolls.
How can I be sure anilox rolls are perfectly cleaned?
We show you cleaning results with a 3D anicam, microscope so that you can be sure. We will measure anilox roll before and after cleaning so that you can be sure of the results.
More details
